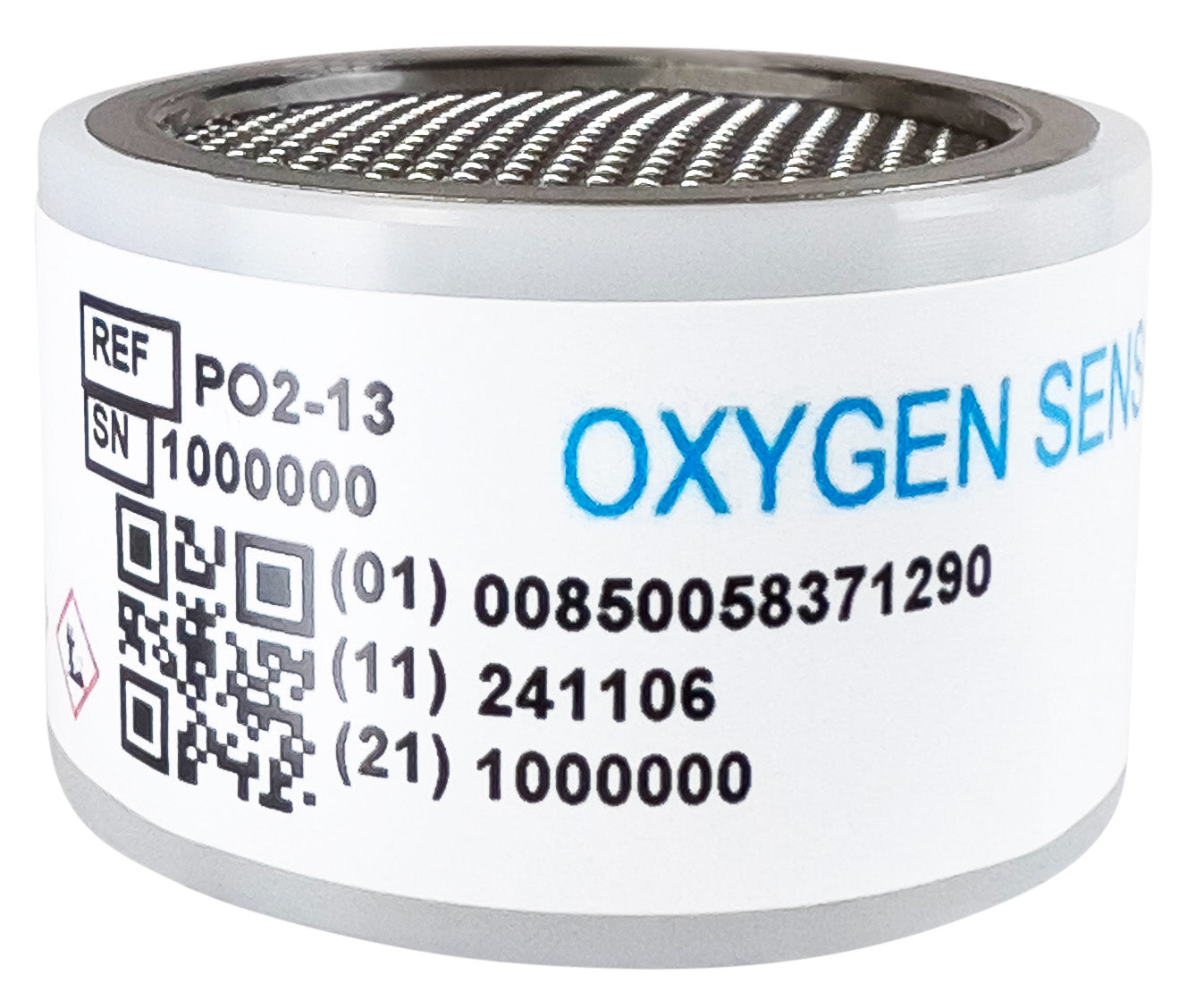

The PO2-13 Percent Oxygen Sensor delivers high accuracy, reliability, and linearity throughout its full measurement range.
The sensor measures oxygen concentrations from 1000 parts-per-million (ppm) up to 25.0%, making it ideal for applications requiring precise low-to-mid oxygen measurement.
Southland Sensing Ltd.'s direct-fit replacement electrochemical galvanic "micro fuel cell" oxygen sensors are recognized for their quality, performance, and exceptional value.
These sensors operate using the same electrochemical principles disclosed in US Patent Nos. 3,429,796 and 3,767,552 and follow the fundamental operating concepts used by other major manufacturers.
✔ High accuracy and stability
✔ Electrochemical micro-fuel cell technology
✔ Ideal for ppm to percent oxygen measurement
✔ Direct replacement design
✔ Backed by our 12-month warranty
Specifications
Sensor Technology
Electrochemical Micro-Fuel Cell
Measuring Range
1000 ppm – 25%
Accuracy
+/- 1% of Signal
Operating Temperature
0 to 50°C
Expected Life
15 Months
Warranty
12 Months
Cross Reference
Direct Fit Replacement
The PO2-13 is a competitive drop-in replacement for multiple oxygen sensors currently available on the market. No modifications are required — simply remove the old sensor and install the PO2-13 into your analyzer, similar to replacing a battery.
