Oxygen Analyzer with Alarm Relay Contacts 100 - 240VAC or 10 - 28 VDC

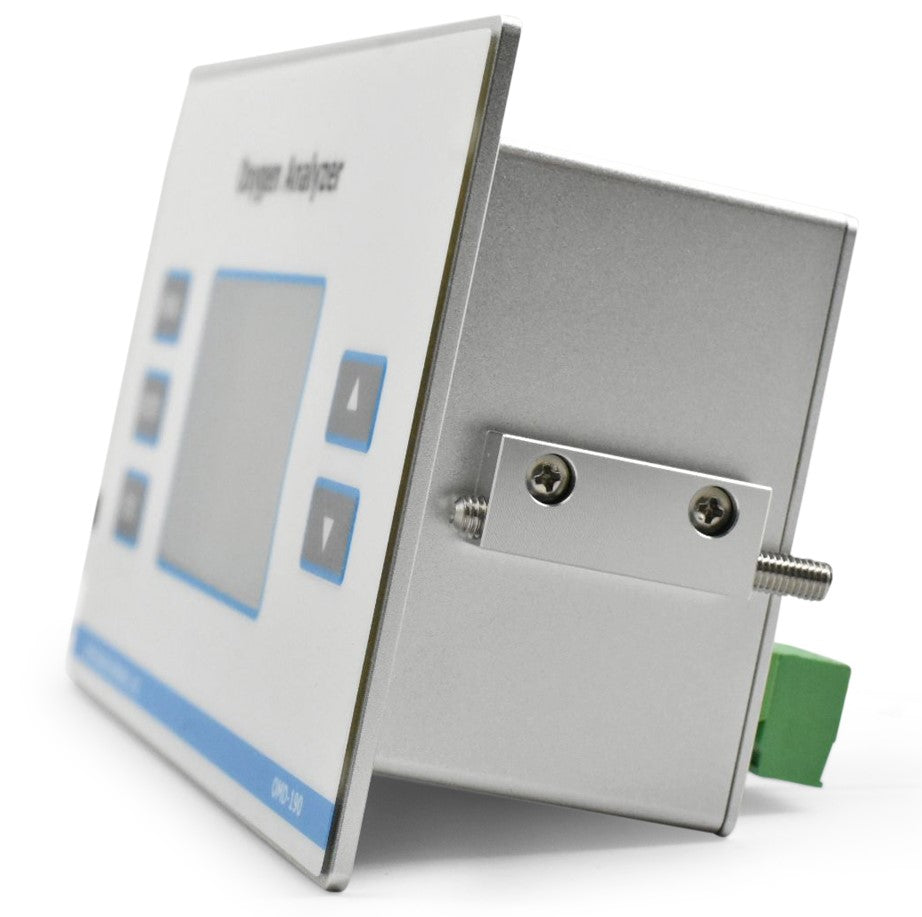

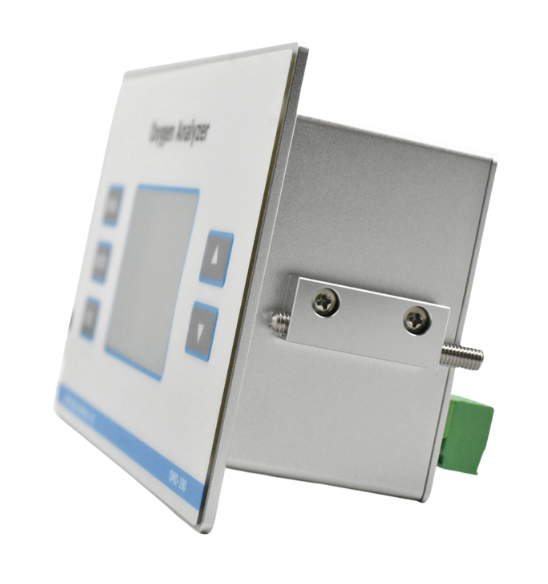

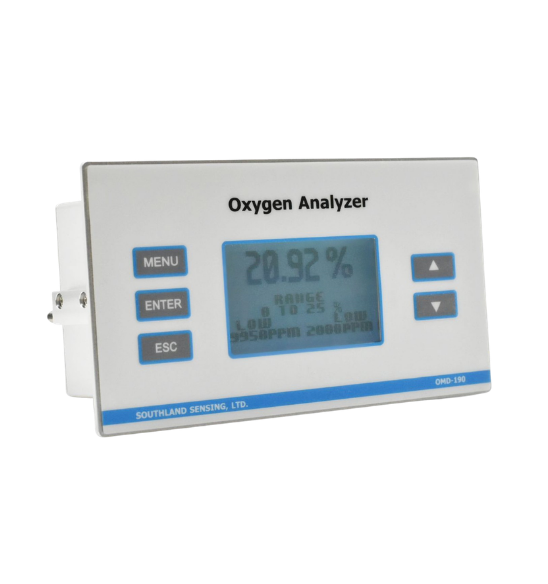

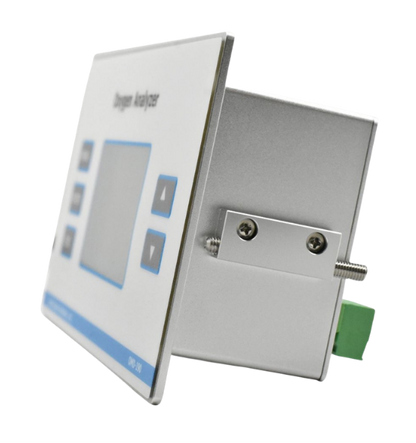

The OMD-190 series oxygen analyzer is a small, compact panel mount unit with a remote sensor housing. Designed for general purpose type installations such as Inert Glovebox systems and O2 / N2 generators.

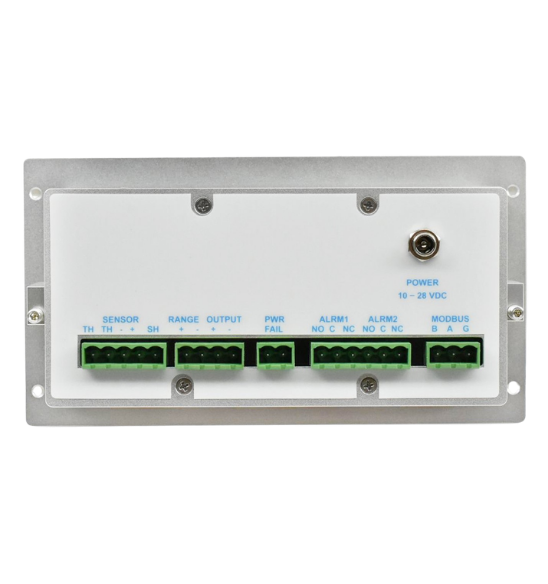

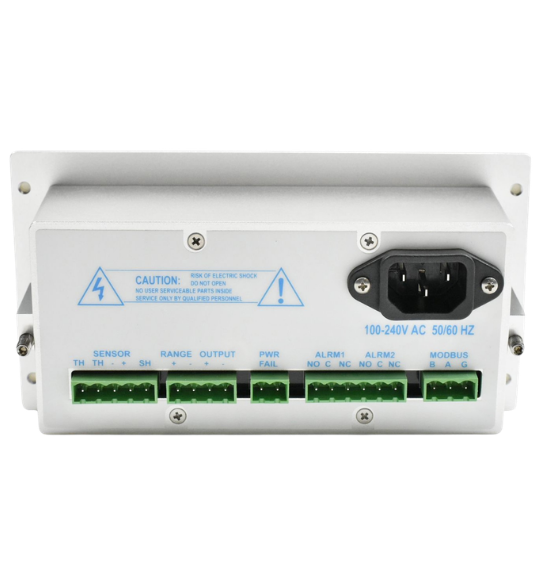

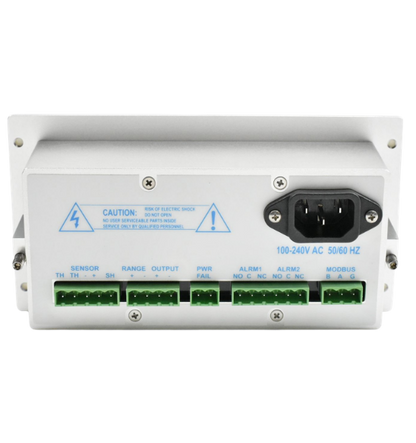

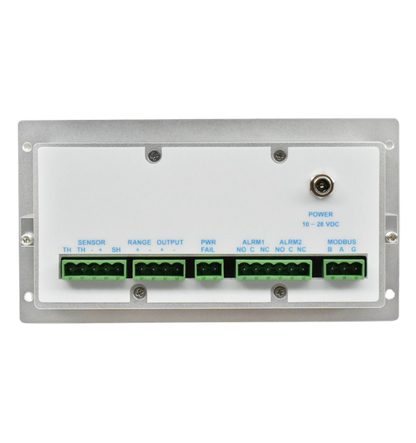

The electronics are highly reliable and feature-packed with a very easy-to-use menu interface. Electronic features include 4 – 20mA analog output, RANGE ID 1 – 5VDC output, 2 alarm relay contacts, bi-directional Modbus RS485 ASCII communication protocol, multiple analysis ranges, and a 10 – 28 VDC or 100 – 240 VAC power input.
The oxygen sensor is based on the galvanic electrochemical fuel cell principal and is manufactured in house under a strict ISO Certified quality program. The sensors are self contained and minimal maintenance is required – no need to clean electrodes or add electrolyte. The precision sensors offer excellent performance, accuracy and stability while maximizing the expected life.
The analyzer comes with multiple ranges from 0 – 10 PPM up to 0 – 100%. Optional sensors can be configured for PPM or Percent oxygen analysis, sensors designed for Inert or CO2 background gases applications are also available.

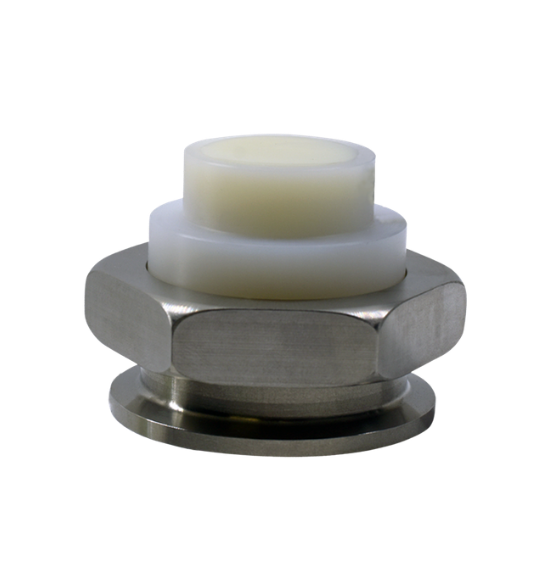

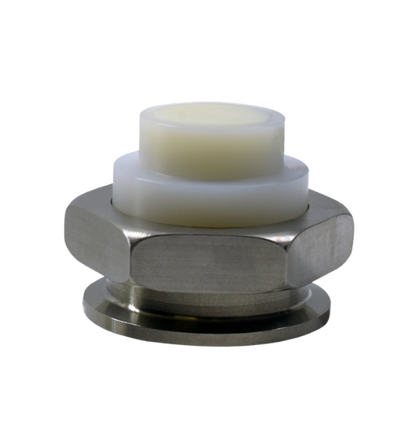

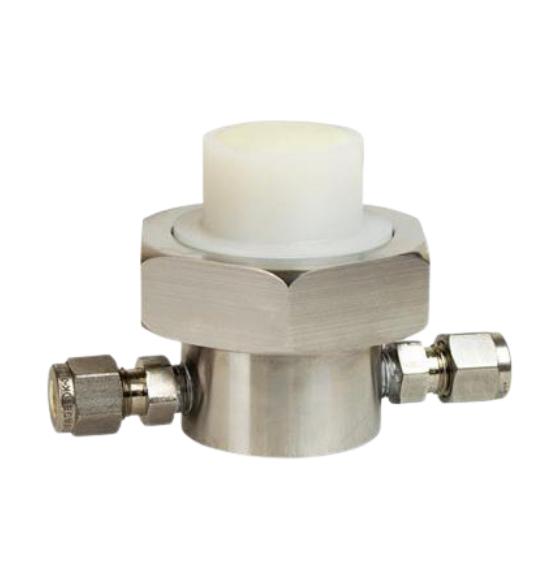

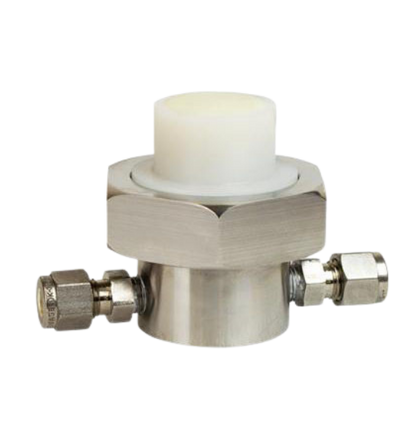

Sensor housing is remote and includes a 6 foot cable. Optional sensor housings include direct fit KF-40 (inert glove box) or flow through housing (6 mm, 1/8″ or 1/4″ compression tube fittings).

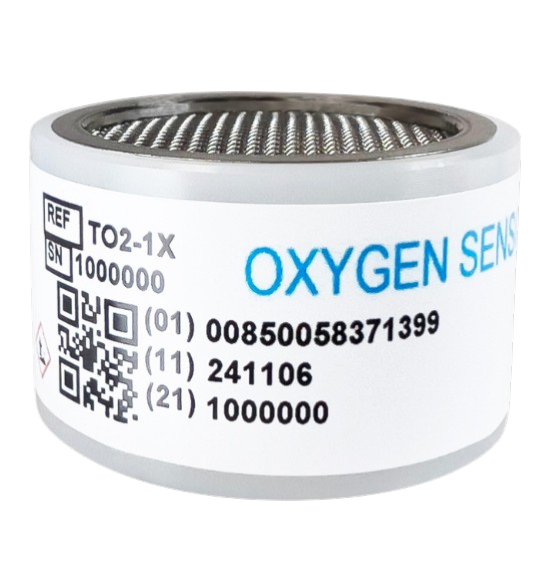

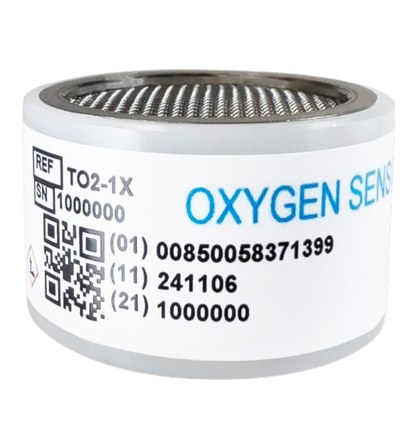

The standard cell (TO2-1x) is unaffected by other background gases such as H2, He or Hydrocarbons.
The sensors are self-contained and minimal maintenance is required - no need to clean electrodes or add electrolyte.
Specifications
| Accuracy: | < +/- 1% of Full Scale Range* |
| Analysis Range: |
0-10ppm/100ppm/1000ppm/10000ppm/25% or 0 - 1%/5%/10%/25%/100% |
| Power: | 100 - 240VAC or 10 - 28 VDC |
Features
- Large Backlit Display w/User-Friendly Menu
- Electrochemical Sensor Technology
Applications
- 3D Metal Printing
- Inert Glovebox Systems
- A variety of industrial process monitoring applications
- Panel Cutout to fit Teledyne 3190 / 3290
- Panel Cutout to fit GPR-1900 / GPR-2900
Download
Click Here to download the PDF.
