Overview

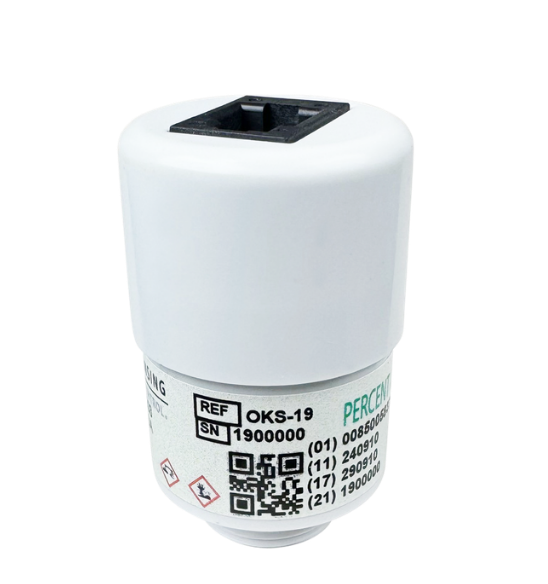

The OKS-19 Percent Oxygen Sensor provides high levels of accuracy, reliability and linearity throughout its measurement ranges. This sensor is a direct fit replacement for the OMD-21, OMD-24 and MED-19 oxygen analyzer.
The sensor is capable of measuring ambient air oxygen up to 100.0%.
Southland Sensing Ltd.'s direct fit replacement electrochemical galvanic "micro fuel cell" oxygen sensors are known for their quality, performance and exceptional value.
Southland Sensing Ltd. designs and manufactures oxygen sensors that have the same principle of operation as disclosed in US Patent Nos. 3,429,796 and 3,767,552.
The oxygen sensors operate under the same principles as those currently being marketed by other manufacturers.
Varying performance advantages to the SSO2 sensors can be attributed to minor modifications in dimensions, connections, and packaging. However, the principle of operation and the basic components remain the same.
Model OKS-19 is not marketed or labeled as FDA cleared.
It is manufactured under ISO 13485 and sold exclusively in international markets where FDA clearance is not required for import or use.
Specifications
| Sensor Technology: | Micro Fuel Cell |
|
Measuring Range:
|
0 - 100 %
|
|
Accuracy Full Scale:
|
+/- 1% of Signal
|
|
Operating Temp:
|
0 to 50 deg C
|
|
Expected Life:
|
24 Months
|
|
Warranty: |
12 Months |
