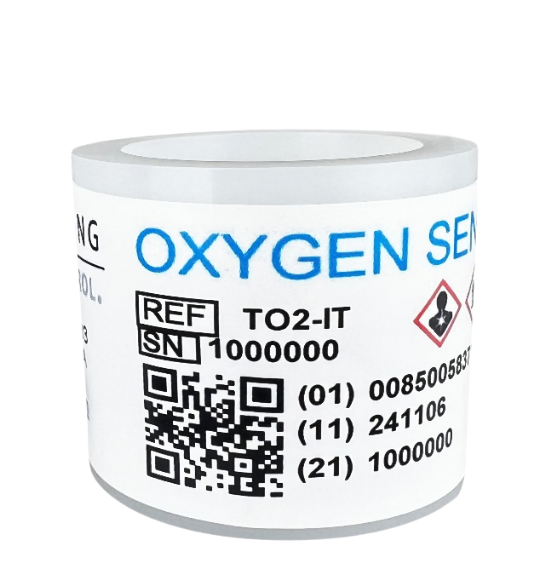

The TO2-IT PPM Oxygen Sensor provides high levels of accuracy, reliability, and linearity throughout its measurement range.
The sensor is capable of measuring oxygen from 0.01 parts-per-million up to 25.0%. For maximum life and performance, it is recommended for use when monitoring oxygen below 1000 ppm.
Southland Sensing Ltd.'s direct-fit replacement electrochemical galvanic "micro fuel cell" oxygen sensors are known for their quality, performance, and exceptional value.
These sensors operate using the same electrochemical principles disclosed in US Patent Nos. 3,429,796 and 3,767,552 and follow the same operating concepts used by other manufacturers in the industry.
✔ Trace ppm oxygen measurement capability
✔ Optimized for acid gas environments (CO₂ / natural gas)
✔ High accuracy and stability
✔ Micro fuel cell electrochemical technology
✔ Backed by our 12-month warranty
Specifications
Sensor Technology
Micro Fuel Cell
Measuring Range
0 - 10 PPM (Min) / 0 - 10,000 PPM (Max)
Accuracy
+/- 1% of Signal
Operating Temperature
0 to 50°C
Expected Life
20 – 25 Months
Warranty
12 Months
Cross Reference
Direct Fit Replacement
The TO2-IT is a competitive drop-in replacement for multiple oxygen sensors in the market. No modifications are required — simply remove the existing sensor and install the TO2-IT into your analyzer, similar to replacing a battery.
