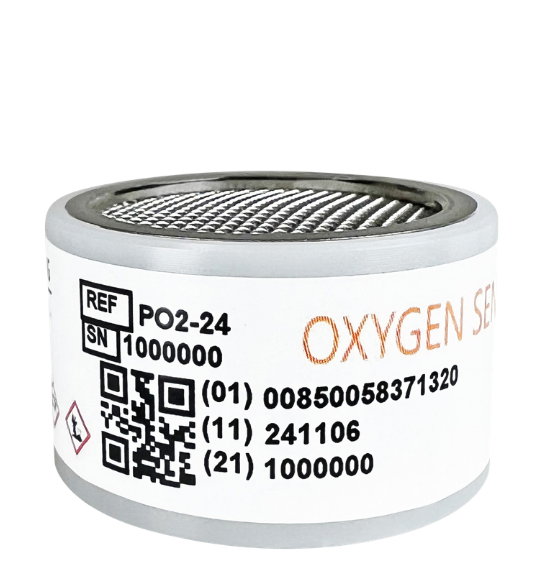

The PO2-24 Percent Oxygen Sensor delivers high accuracy, reliability, and linearity across its full measurement range.
The sensor is capable of measuring oxygen concentrations from 1000 parts-per-million (ppm) up to 25.0%.
The PO2-24 series oxygen sensor is specifically designed for use in acid gas streams such as CO₂ or natural gas background environments.
Southland Sensing Ltd.'s direct-fit replacement electrochemical galvanic "micro fuel cell" oxygen sensors are recognized for their quality, performance, and exceptional value.
These sensors operate using the same electrochemical principles disclosed in US Patent Nos. 3,429,796 and 3,767,552 and follow the same operating concepts used by other manufacturers in the industry.
✔ Optimized for acid gas (CO₂ / natural gas) applications
✔ High accuracy and stability
✔ Electrochemical micro-fuel cell technology
✔ Direct drop-in replacement design
✔ Backed by our 12-month warranty
Specifications
Sensor Technology
Electrochemical Micro-Fuel Cell
Measuring Range
1000 ppm – 25%
Accuracy
+/- 1% of Signal
Operating Temperature
0 to 50°C
Expected Life
24 Months
Warranty
12 Months
Cross Reference
Direct Fit Replacement
The PO2-24 is a competitive drop-in replacement for multiple oxygen sensors in the market. No modifications are required — simply remove the existing sensor and install the PO2-24 into your analyzer, similar to replacing a battery.
